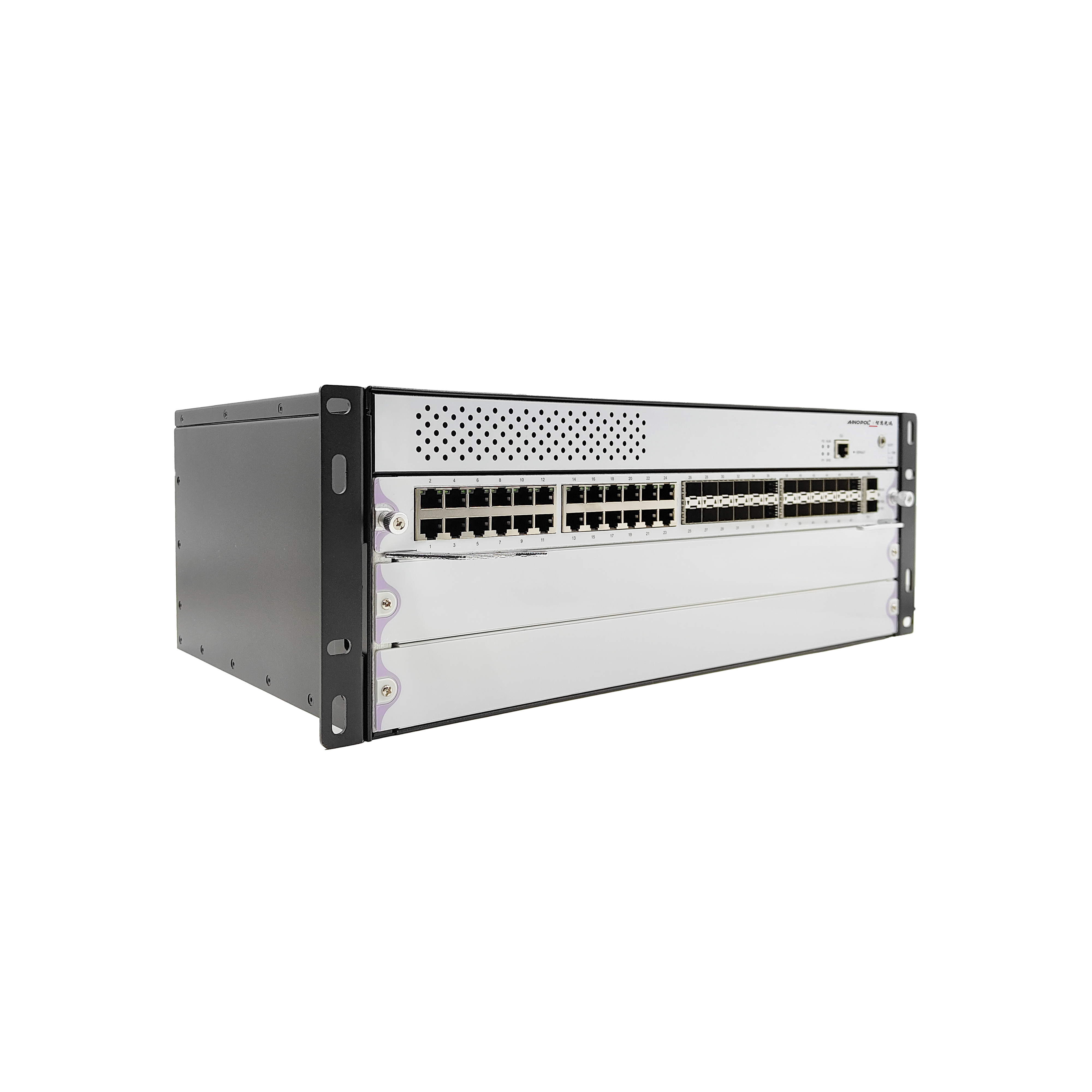

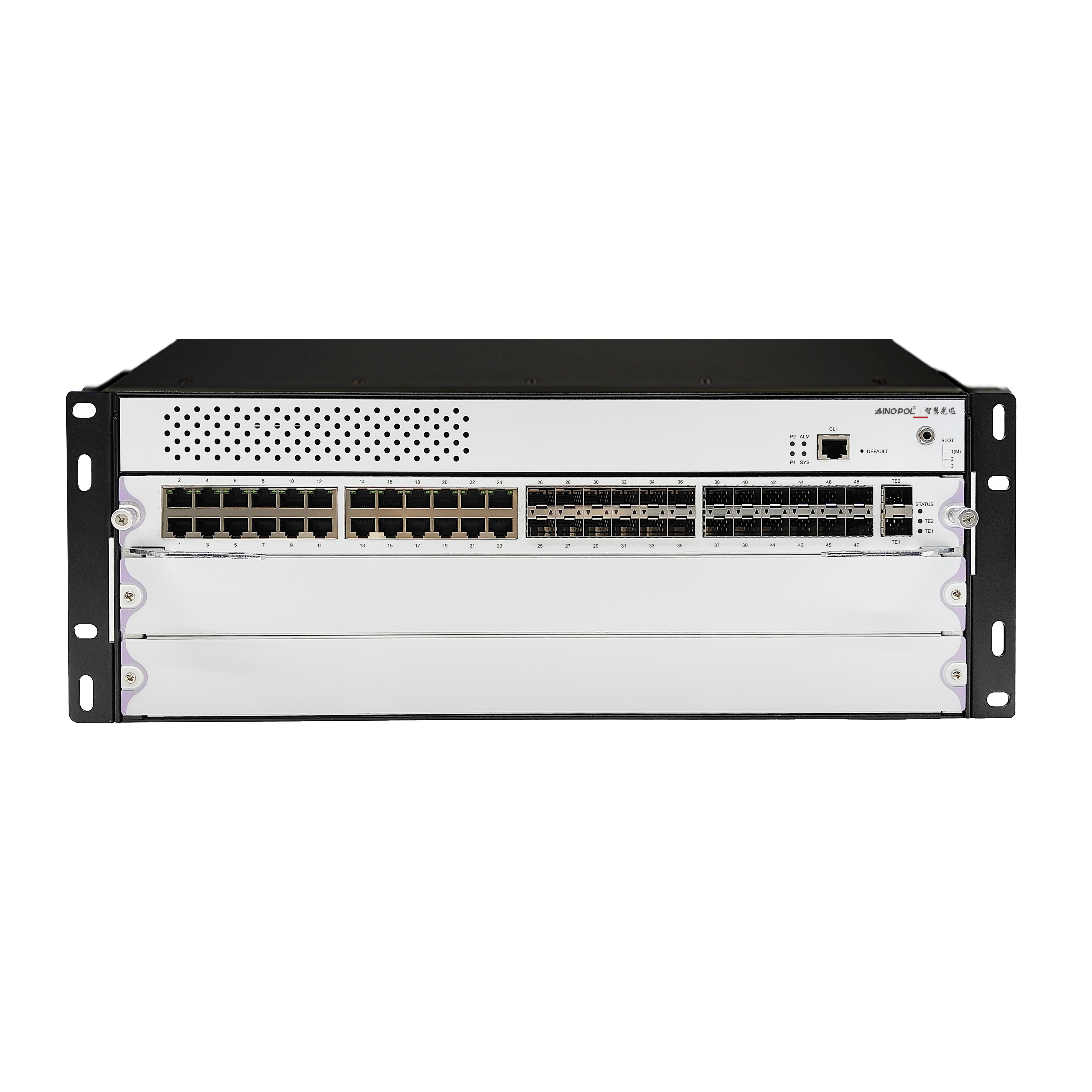

CS8503E (Ultra) final assembly chassis
4U chassis
Includes fan disk
2 power slots, standard without power supply
Number of slots: 3
Business oriented slots: 3
Insert any business line card into slot 1 to activate the main control module
Exchange capacity: 16Tbps
Packet forwarding rate: 2880Mpps
Working temperature/humidity: 0 ℃ -40 ℃, 10% -90% without condensation
AC power supply: 100V-240V, 50Hz ± 10%
DC power supply: 48V
Chassis size mm (width x depth x height): 436 x 280 x 166
Whole machine weight (empty configuration): 10kg
EAAS Cloud Unified Cloud Management**
Including XOS system software V1.0
Final assembly chassis * 1
Fan disk * 1
1 set of hanging ears
Certificate of conformity * 1
Product manual * 1
