ZH-AC100（Ultra） ZH-AC100（Ultra）

Recommended usage scenario (pure internet service) 100 terminals Comes with TR069 authorization for 100 terminals 5 * 10/100/1000M electrical port (WAN/LAN free switching) 1 * 100/1000M SFP optical port (WAN/LAN free switching) 1 * USB 3.0 interface 13 inch desktop style EAAS Cloud Unified Cloud Management Including TR069 terminal management authorization: 100 Including SD-WAN authorization Including IPv6 authorization External power supply DC 12V 1A Power consumption<10 watts Product size: 218x130x30mm Product weight: 2.6kg Working temperature: -10 ℃~65 ℃ Including XOS system software V1.0 Host * 1 Power cord * 1 Certificate of conformity * 1

ZH-A38 ZH-A38

Recommended usage scenario: Room 40 40 Smart Screen authorizations 42 SIP terminal authorizations Include authorization for a hotel scene 6 * 10/100/1000M electrical port 2 * USB 2.0 interface 1 * CONSOLE interface 13 inch 1U desktop style Power consumption<30 watts Built in power supply 100-240V AC50/60Hz Product size: Product weight: Working temperature: -10 ℃~65 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-VS100（Ultra） ZH-VS100（Ultra）

Recommend using scenarios to replace traditional analog phones and SOS intercoms 86 Wall mounted Telephone Interface: 1 RJ11 interface Button: 1 trigger button Electricity: Powered by RJ11 telephone line Press the button to call the number 7 Length * Width * Height: 86 * 86 * 34.2mm Working temperature: -10 ℃~50 ℃ Including XOS system software V1.0 Host * 1 Installation accessories package * 1 Certificate of conformity * 1

ZH-VOLTXG64（新品10月出货） ZH-VOLTXG64（新品10月出货）

Compatible with SFP XGPON mode Supports up to 64 XG ONU terminals Including XOS system software V1.0 Size: 14mm * 79mm * 8mm Power consumption: ≤ 5W Luminescence: ≤ 2db Working temperature: -10 ℃~50 ℃ host*1 Optical module * 1 DC power supply * 1

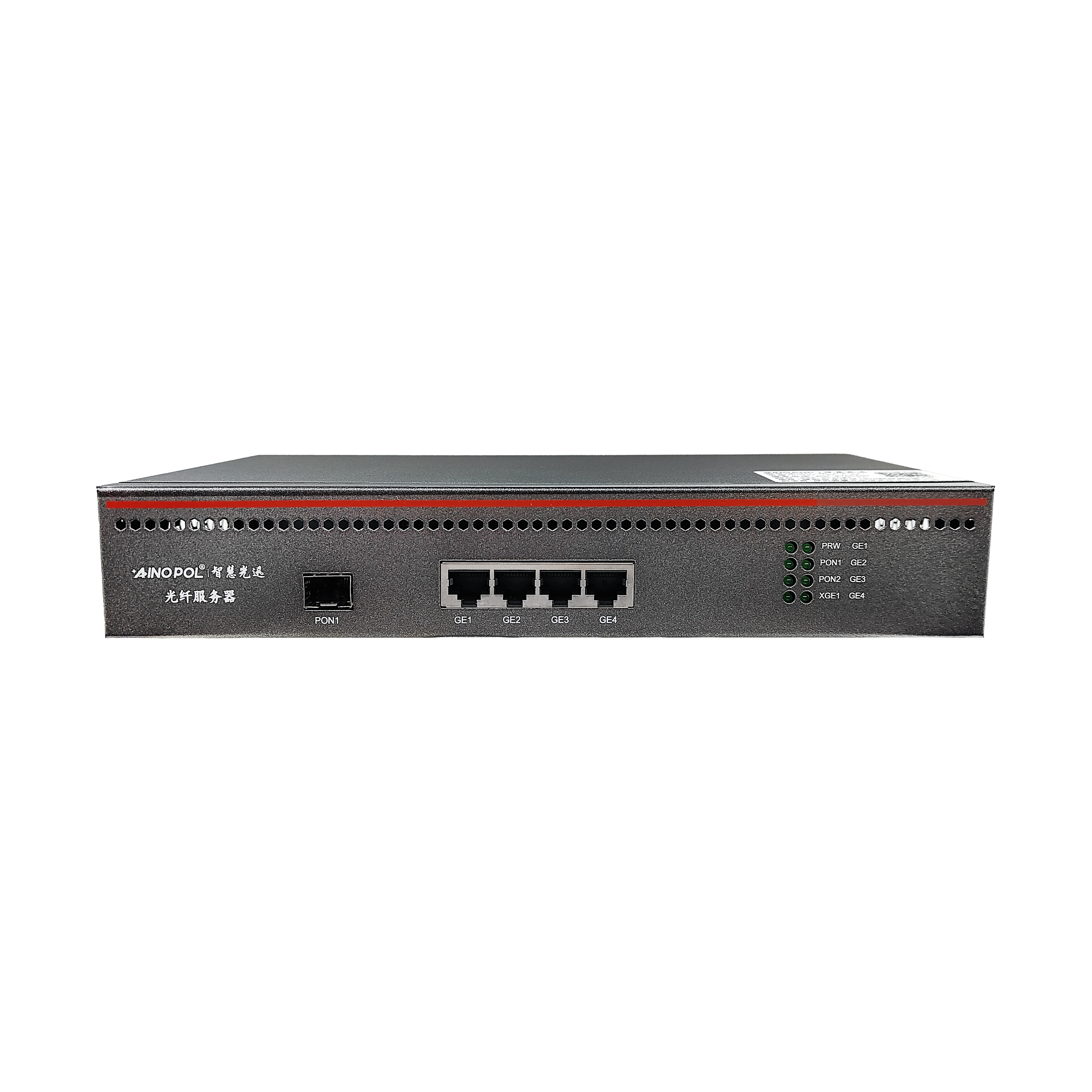

ZH-1GS（LI） ZH-1GS（LI）

Recommended standby mode (1080P 4M bitrate) with 150 cameras 13 inch desktop style Switching capacity: 16Gbps Packet forwarding rate: 23.808Mpps 1 GPON user port (including C+module) 4 * GE network port upstream port Maximum support for 64 ONU access Power consumption: ≤ 10W External power supply: DC 12V 1.5A Product size: 270x160x45mm Product weight: 1.5kg Working temperature: -10 ℃~75 ℃ Including XOS system software V1.0 Host * 1 DC power supply * 1 19 inch cabinet hanging ears * 1 set Certificate of conformity * 1 Product manual * 1

ZH-F1 Single port ONU

Debugging free and maintenance free type DC: 5V～12V PS: Default standard configuration does not include DC power supply Provide 1 GPON/EPON adaptive PON optical port uplink 1 GE port (10/100/1000M adaptive) network port Up and down speed: 1.25Gbps/2.5Gbps 1.25Gbps/1.25Gbps Transmitting optical power: 0.5-4dBm Sensitivity: ≥ -28dBm Upstream and downstream wavelengths: 1310nm/1490nm Power consumption: ≤ 2.3W Product size: 105mm (L) x 28mm (W) x 18mm (H) Working environment: 0 ℃~55 ℃; 10%~85% non condensing Including XOS system software V1.0 host*1 User manual&certificate of conformity * 1

ZH-AX3000J Home router

Recommended usage scenario (pure internet service) 60 terminal Recommended usage scenario (SD-WAN) 40M traffic Wireless dual band WiFi 6 router with a transmission rate of up to 3000Mbps Dual core CPU with a clock speed of 1.3GHz 1 10/100M/1000M Ethernet (WAN) interface 3 10/100M/1000M adaptive Ethernet (LAN) interfaces Wireless standard: IEEE802.11b/g/a/n/ac/ax External 6 omnidirectional 5dbi gain non detachable antennas 2.4G up to 574Mbps 5G can reach up to 2402Mbps Recommended number of connections: 40 terminals Working temperature: -0 ℃~40 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing Power consumption: ≤ 10W External power supply DC12V 1A Product weight: 0.85kg Size: 226 * 133 * 50 mm EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 Certificate of conformity * 1

ZH-AP1500S（新品10月出货） ZH-AP1500S（新品10月出货）

Recommend connecting 60 wireless terminals WiFi 6 Ceiling AP Network port: 2 * 1000Mbps Length * Width: 186mm × 42.5mm POE: Supports 802.3af/802.3at Power consumption: ≤ 12W Reset button, LED Wireless standard: IEEE802.11a/b/g/n/ac Wireless speed: Dual band 1200Mbps Support zero roaming Antenna specifications: 2 * 4dBi with built-in 2.4G antenna, 2 * 4dB with built-in 5.8G antenna Transmission power: 2.4G ≤ 26dBm (200mW power adjustable) Transmission power: 5.8G ≤ 25dBm (adjustable power of 100mw) Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing Only supports EAAS cloud AC unified cloud management, starting from scratch Including XOS system software V1.0 host*1 User manual&certificate of conformity * 1

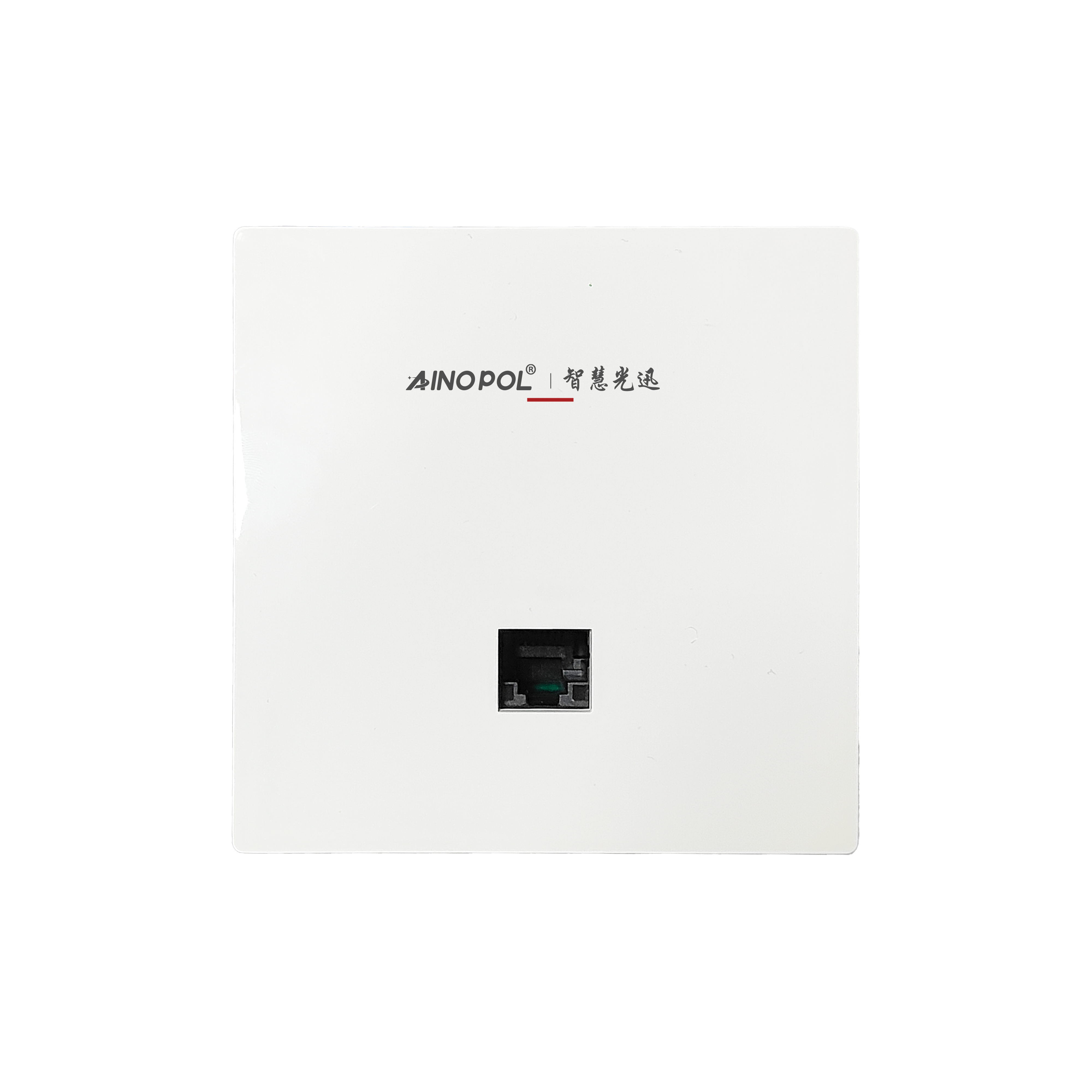

ZH-AP1500P（新品10月出货） ZH-AP1500P（新品10月出货）

Recommend connecting 40 wireless terminals WiFi 6 86 Wall Panel AP Network port: 2 * 1000Mbps Length * Width * Height: 86mm * 86mm * 38.3mm (outer wall height 8mm) POE: Supports 802.3af/802.3at Power consumption: ≤ 12W Reset button, LED hidden type Wireless standard: IEEE802.11a/b/g/n/ac Wireless speed: Dual band 1500Mbps Support zero roaming Antenna specifications: 2 * 2dBi with built-in 2.4G antenna, 2 * 2dBi with built-in 5.8G antenna Transmission power: 2.4G ≤ 20dBm (adjustable power of 100mW) Transmission power: 5G ≤ 17dBm (50mW power adjustable) Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing Only supports EAAS cloud AC unified cloud management, starting from scratch Including XOS system software V1.0 host*1 User manual&certificate of conformity * 1

ZH-AP700P-M ZH-AP700P-M

Recommend connecting 20 wireless terminals 86 type wall panel AP Network port: 2 * 100Mbps Length * Width * Height: 86 * 86 * 33mm POE: Supports 802.3af/802.3at Power consumption: ≤ 8W Reset button, LED hidden type Wireless standard: IEEE802.11a/b/g/n/ac Wireless speed: Dual band 1200Mbps Support zero roaming Antenna specifications: 2 * 2dBi with built-in 2.4G antenna, 1 * 1 with built-in 5.8G antenna Transmission power: 2.4G ≤ 20dBm (adjustable power of 100mW) Transmission power: 5G ≤ 17dBm (50mW power adjustable) Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing EAAS Cloud Unified Cloud Management, Zero Start Including XOS system software V1.0 Host * 1 User manual&certificate of conformity * 1

ZH-AC300R Fusion routing

Recommended usage scenario (pure internet service) 500 terminal Recommended usage scenario (Internet service+VOIP) 130 telephone terminal+400 Internet terminal Recommended usage scenario (Internet service+VIP+streaming media) Room 80 19 inch 1U rack mounted fusion router 8 * 10/100/1000M electrical port 2 * 10/100/1000/2500M electrical ports 2 * 10/100/1000M SFP optical port 1 * USB 3.0 interface Built in power supply 100-240V AC50/60Hz Power consumption<30 watts Product size: 440x250x45mm Product weight: 2kg Working temperature:- 10℃～65℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-1GS Single port GPON OLT

Recommended standby mode (1080P 4M bitrate) with 170 cameras Recommended standby 64 rooms 13 inch desktop single port GPON fiber optic server Switching capacity: 16Gbps Packet forwarding rate: 23.808Mpps 1 GPON user port (including C+module) 1 * 10GE optical port+4 * GE network port upstream port 1 console port Maximum support for 128 ONU access Power consumption: ≤ 10W External power supply: DC 12V 1.5A Product size: 270x160x45mm Product weight: 1.5kg Working temperature:- 10℃～75℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 C+optical module * 1 Power supply * 1 19 inch cabinet hanging ears * 1 set Certificate of conformity * 1 Product manual * 1
