ZH-F4125W-2P Multi service dual band cloud AP

Recommend connecting 40 wireless terminals Dual frequency multi service optoelectronic fusion AP Provide 1 GPON/EPON adaptive PON optical port uplink 4 GE ports (10/100/1000M adaptive) LAN, with 3 and 4 ports supporting POE power supply 1 RJ11 telephone port Support adaptive PON and Ethernet uplink Wireless standard: IEEE802.11b/g/n/ac Dual band 1200Mbps, built-in omnidirectional antenna with 3dBi gain Support zero roaming Transmission power: 2.4G ≤ 26dBm (400mW power adjustable) Transmission power: 5.8G ≤ 25dBm (350MW power adjustable) Local DC power supply 54V 1.2A Power consumption: ≤ 65W Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing EAAS Cloud Unified Cloud Management, Zero Start Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1

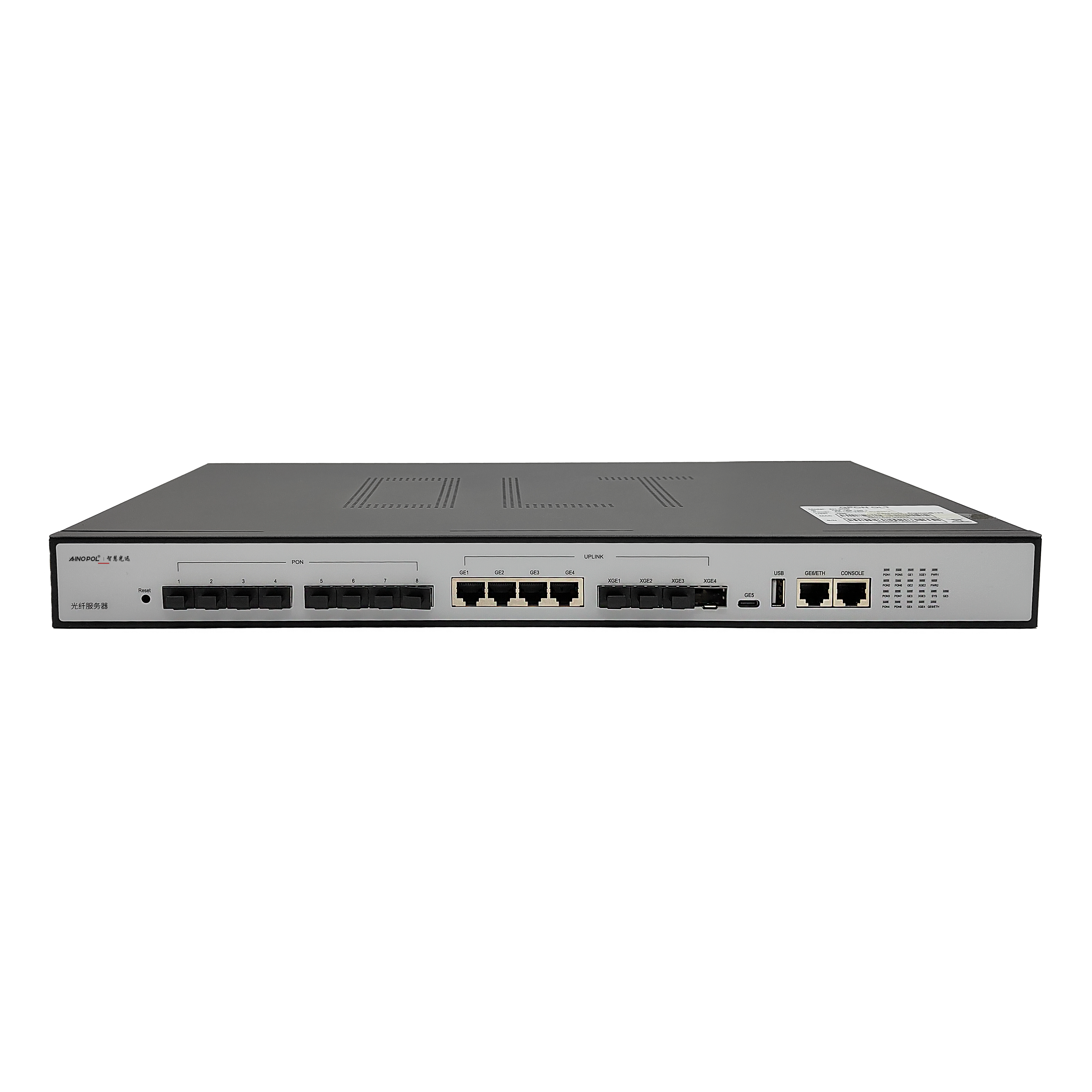

ZH-16G 16 port GPON OLT

Recommended standby (1080P 4M bitrate) with 2000 cameras Recommended standby room 1024 19 inch 1.5U rack mounted GPON fiber server Switching capacity: 336Gbps Packet forwarding rate: 108Mpps 16 GPON user ports 2 * 10GE optical port+4 * GE COMBO port 1 console port Maximum support for 2048 ONU access Power consumption: ≤ 110W Built in power supply 100-240V AC50/60Hz (1+1 redundant power supply) Product size: 430x400x65mm Product weight: 5.4kg Working temperature:- 20℃～75℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 C+optical module * 16 Power cord * 2 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-P1500 Audio and video gateway

19 inch 2U rack mounted Host * 1 6 * 10/100/1000M electrical port 2 * 10GE optical port 2 * USB port 2.0 2 * USB port 3.0 1 * VGA interface Power consumption<150 watts 4T recording disc 8000 SIP terminal authorizations Authorization for 10 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power consumption<150 watts Power supply * 2 (100-240V AC50/60Hz) Product size: 675x440x90mm Product weight: 16kg Working temperature:- 10℃～65℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 2 Certificate of conformity * 1 Product manual * 1

ZH-CS5528X-SI 24 port 10 Gigabit MDU switch

24 port three-layer cloud management switch 24 10/100/1000M Ethernet ports 4 10GE SFP+optical ports 1 Console port 1U rack mounted Backplane bandwidth 336Gbps Packet forwarding rate 168Mpps MAC Address Table 16K Power consumption: ≤ 50W Product size: 440 * 205 * 44mm Working temperature: -10 ℃~50 ℃ AC100-240V EAAS Cloud Unified Cloud Management** Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1

ZH-F4225W Multi service dual band cloud AP

Recommend connecting 40 wireless terminals Dual frequency multi service optoelectronic fusion AP Provide 1 GPON/EPON adaptive PON optical port uplink 4 GE ports (10/100/1000M adaptive) LAN 2 RJ11 telephone ports Support adaptive PON and Ethernet uplink Wireless standard: IEEE802.11b/g/n/ac Dual band 1200Mbps, external omnidirectional antenna with 3dBi gain Support zero roaming Transmission power: 2.4G ≤ 26dBm (400mW power adjustable) Transmission power: 5.8G ≤ 25dBm (350MW power adjustable) Local DC power supply 12V 1.5A Power consumption: ≤ 10W Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing EAAS Cloud Unified Cloud Management, Zero Start Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1

ZH-S Scenario authorization

Scenario authorization

ZH-CS6512X-SI 12 port three-layer all optical cloud switch

12 port three-layer full 10 Gigabit cloud management switch 12 1000/10GBase-X SFP+optical ports 1 Console port 1U rack mounted Backplane bandwidth 336Gbps Packet forwarding rate 228Mpps MAC Address Table 32K Power consumption: ≤ 30W Product size: 440 * 205 * 44mm Working temperature: -10 ℃~50 ℃ AC100-240V/50-60Hz EAAS Cloud Unified Cloud Management** Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1

ZH-AC1000 Fusion routing

Recommended usage scenario (pure internet service) 5000 terminal Recommended usage scenario (Internet service+VOIP) 1280 telephone terminal+3000 Internet terminal 19 inch 2U rack mounted 10G converged router 6 * 10/100/1000M electrical port 2 * 10GE optical port 2 * USB port 2.0 1 * CONSOLE interface Built in power supply 100-240V AC50/60Hz Power consumption<100 watts Product size: 500x430x90mm Product weight: 8.4kg Working temperature:- 10℃～65℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-F4 4-port industrial ONU terminal

4-port iron shell MDU Provide 1 GPON/EPON adaptive PON optical port uplink 4 GE ports (10/100/1000M adaptive) network ports* Up and down speed: 1.25Gbps/2.5Gbps 1.25Gbps/1.25Gbps Transmitting optical power: 0.5-4dBm Sensitivity: ≥- 28dBm Upstream and downstream wavelengths: 1310nm/1490nm Power consumption: ≤ 6W Product dimensions: 145mm (length) x 105mm (width) x 25mm (height) Weight: 0.5KG Working environment: -40 ℃~75 ℃; 10%~85% non condensing Storage environment: -40 ℃~85 ℃; 5%~95% non condensing DC: 12V 1A EAAS Cloud Unified Cloud Management, Zero Start** Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1

ZH-P2000 Audio and video gateway

19 inch 2U rack mounted Host * 1 6 * 10/100/1000M electrical port 2 * 10GE optical port 2 * USB port 2.0 2 * USB port 3.0 1 * VGA interface Power consumption<150 watts 4T recording disc 20000 SIP terminal authorizations Authorization for 10 live streaming channels Excluding scheduling terminal authorization Excluding authorization from the call center Power consumption<150 watts Power supply * 2 (100-240V AC50/60Hz) Product size: 675x440x90mm Product weight: 16kg Working temperature: -10 ℃~65 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 2 Certificate of conformity * 1 Product manual * 1

ZH-CS5554X-SI 48 port 10 Gigabit MDU switch48 port 10 Gigabit MDU switch

48 port three-layer cloud management switch 48 10/100/1000M Ethernet ports 6 10Gbps SFP+optical ports 1 Console port 1U rack mounted Backplane bandwidth 336Gbps Packet forwarding rate of 160.71Mpps MAC Address Table 32K Power consumption: ≤ 60W Product size: 440 * 260 * 44mm Working temperature: 0 ℃~40 ℃ Power input: AC100-240V EAAS Cloud Unified Cloud Management** Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1

ZH-F416W Wi-Fi6 Dual band Optical AP+

Recommend connecting 64 wireless terminals WiFi 6 dual band multi service optoelectronic fusion AP Provide 1 GPON/EPON adaptive PON optical port uplink 4 GE ports (10/100/1000M adaptive) LAN 1 RJ11 telephone port Support adaptive PON and Ethernet uplink Wireless standard: IEEE802.11b/g/n/ac Wireless standard: IEEE802.11b/g/n/ac/ax WiFi 6 dual band 3000Mbps, built-in omnidirectional antenna with 3dBi gain MIMO：2×2 MIMO (2.4GHz&5GHz) Air interface speed: 574 Mbps (2.4GHz)+2402 Mbps (5GHz) Maximum number of SSIDs for RF: 4 Support zero roaming Transmission power: 2.4G ≤ 26dBm (400mW power adjustable) Transmission power: 5.8G ≤ 25dBm (350MW power adjustable) Local DC power supply 12V 1.5A Power consumption: ≤ 15W Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing EAAS Cloud Unified Cloud Management, Zero Start Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1
