ZH-IAD4S IAD

Desktop IAD 4 analog telephone interfaces (FXS port) 2 network ports Power consumption<12 watts Power supply: 12V DC/2A Product size: 190mm * 142mm * 35mm Product weight: 637g Working temperature: 0 ℃~50 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1 Product manual * 1

ZH-AP18006S-M Wi-Fi6 dual frequency ceiling

Recommend connecting 120 wireless terminals WiFi 6 Ceiling mounted Dual band AP+ Installation method: Indoor ceiling and wall mounted installation Network port: 1 * 1000Mbps+1 * 2500Mbps Length * Width * Height: 200 * 200 * 37.5mm Power supply: 802.3af (48V PoE) Power consumption: ≤ 18W Wireless standard: IEEE802.11a/b/g/n/ac/ax Dual band 3000Mbps, built-in 4 * 3dbi dual band antenna Maximum number of SSIDs for RF: 4 Support zero roaming Transmission power: 2.4G/5.8G ≤ 23dBm (200mW power adjustable) Recommended number of connections: 120 terminals Product size: 220 * 220 * 35mm Working temperature: -10 ℃~55 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing EAAS Cloud Unified Cloud Management, Zero Start Including XOS system software V1.0 Host * 1 Installation base * 1 Certificate of conformity * 1

ZH-AC500-2XSFP ZH-AC500 (Ultra) dedicated business sub card

2 * 10G SFP+optical port service sub card

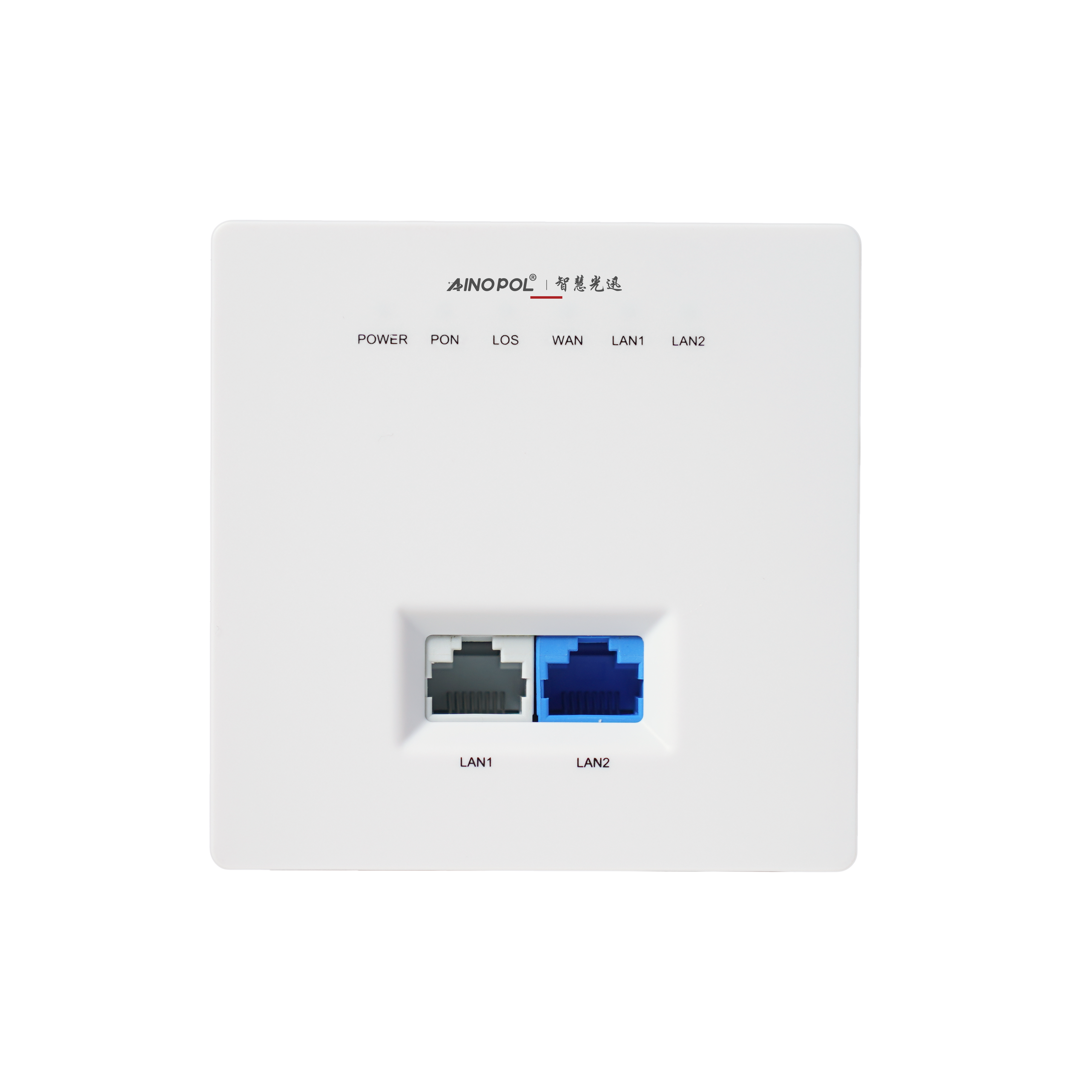

ZH-FM12 双口面板ONU

Host * 1 Provide 1 GPON/EPON adaptive PON optical port uplink 2 GE ports (10/100/1000M adaptive) Power Supply: AC220V Power consumption: ≤ 7W Physical dimensions: 85mm (length) x 85mm (width) x 44mm (height)** Working environment: 0 ° C to 60 ° C; 10% to 85% non condensing Including XOS system software V1.0

ZH-IAD8S IAD

Desktop IAD 8 analog telephone interfaces (FXS ports) 2 network ports Power consumption<12 watts Power supply: 12V DC/2A Product size: 190mm * 142mm * 35mm Product weight: 637g Working temperature: 0 ℃~50 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power supply * 1 Certificate of conformity * 1 Product manual * 1

ZH-AP1200W(LI) Wi-Fi outdoor wireless AP

Recommend connecting 120 wireless terminals WiFi 6 outdoor dual band AP+ Installation method: wall mounted, holding pole Network port: 1 × 1Gbps Optical port: 1.25 \ 2.5Gbps * 1 SFP POE: 802.3af protocol 48V 0.5A External antenna 2 * 5dbi Frequency range: 2.400~2.4835GHz 5.150~5.825GHz Data rate: 2.4G provides a maximum access rate of 0.574Gbps, while 5G provides a maximum access rate of 2.402Gbps. The whole machine can provide a maximum access speed of 2.976Gbps Wireless standard: IEEE802.11a/b/g/n/ac/ax, dual band 3000Mbps WIFI 6 Maximum number of SSIDs for RF: 4 Support zero roaming Power consumption: ≤ 12W Product size: 216 * 102 * 59mm (excluding antenna) Weight: 2kg Waterproof and dustproof: IP67 Working temperature: -40 ℃~65 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing EAAS Cloud Unified Cloud Management, Zero Start Including XOS system software V1.0 Host with antenna * 1 Install clamp * 1 Certificate of conformity * 1

ZH-AC500-4XSFP ZH-AC500-4XSFP

4 * 10G SFP+optical port service sub card

ZH-AC500-4X2.5G ZH-AC500 (Ultra) dedicated business sub card

4 * 2.5G electrical port business sub card

ZH-MA8500X2 Frame type OLT optical access central equipment

MA8500 series plug-in fiber optic server OLT Backplane bandwidth: 1.28T* Packet forwarding rate: 952.32Mpps MAC address capacity: 128K Standard fan board 1 power slot (standard includes AC+DC power supply) 2 main control slots* 2 business slots* Working environment: -20 ℃ to 65 ℃; 10% to 85% non condensing Input voltage: AC100～240V，DC 36～72V Supports dual power input (AC+DC) Typical power consumption: 280W Exterior dimensions (mm): 482.6 * 270 * 88.9mm 19 inches wide, 2U high Weight: Fully equipped 12 kg, empty frame 4.5 kg EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Final assembly chassis * 1 Standard fan board * 1 AC+DC integrated power module * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-IAD16S IAD

1U 19 inch rack mounted IAD 16 analog telephone interfaces (FXS ports) 2 network ports Power consumption<20 watts Power supply: 90-264V AC Product size: 510mm * 90mm * 310mm Product weight: 2.86kg Working temperature: 0 ℃~50 ℃ EAAS Cloud Unified Cloud Management Including XOS system software V1.0 Host * 1 Power cord * 1 1 set of hanging ears Certificate of conformity * 1 Product manual * 1

ZH-AP1200W Wi-Fi outdoor wireless AP

Recommend connecting 120 wireless terminals WiFi 6 outdoor dual band AP+ Installation method: wall mounted, holding pole Network port: 1 × 1Gbps Optical port: 1.25 \ 2.5Gbps * 1 SFP POE: 802.3af protocol 48V 0.5A External antenna (additional configuration) Frequency range: 2.400~2.4835GHz 5.150~5.825GHz Data rate: 2.4G provides a maximum access rate of 0.574Gbps, while 5G provides a maximum access rate of 2.402Gbps. The whole machine can provide a maximum access speed of 2.976Gbps Wireless standard: IEEE802.11a/b/g/n/ac/ax, dual band 3000Mbps WIFI 6 Maximum number of SSIDs for RF: 4 Support zero roaming Power consumption: ≤ 20W Product size: 242 * 217 * 60mm (excluding antenna) Weight: 1.5kg Waterproof and dustproof: IP67 Working temperature: -40 ℃~65 ℃ Storage temperature: -40 ℃~70 ℃ Working humidity: 10% to 90% RH, non condensing Storage humidity: 5% to 95% RH, non condensing EAAS Cloud Unified Cloud Management, Zero Start Including XOS system software V1.0 Host with antenna * 1 Install clamp * 1 Certificate of conformity * 1

ZH-AC2000-4G Plug in card fusion routing service sub card

4 * 10/100/1000M network port service sub card
